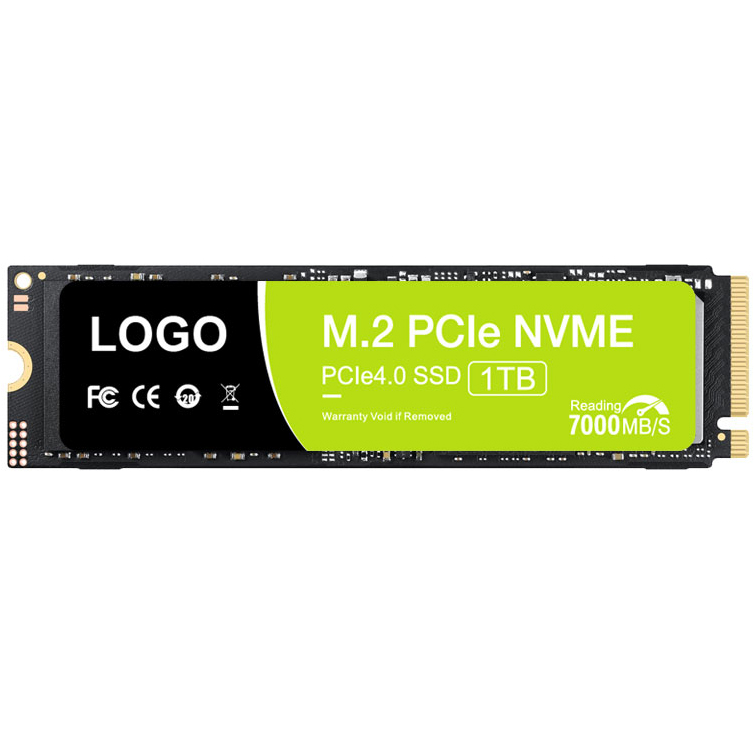

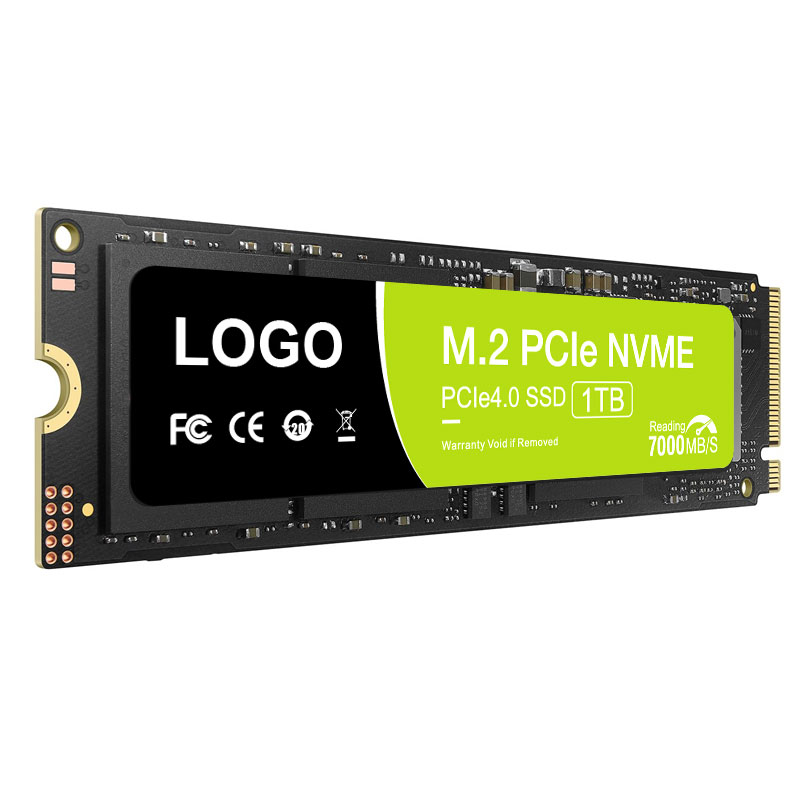

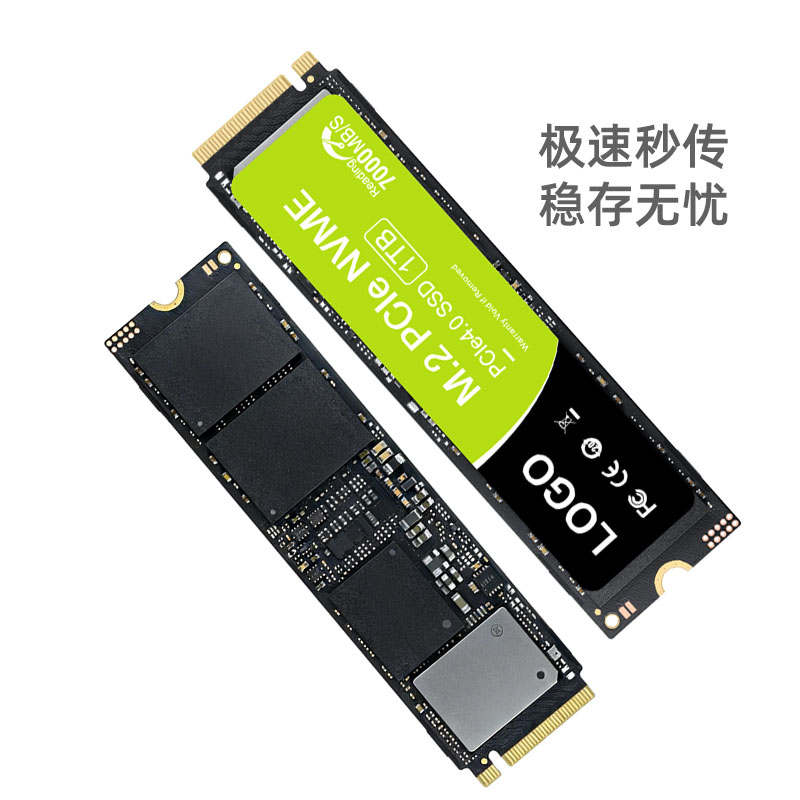

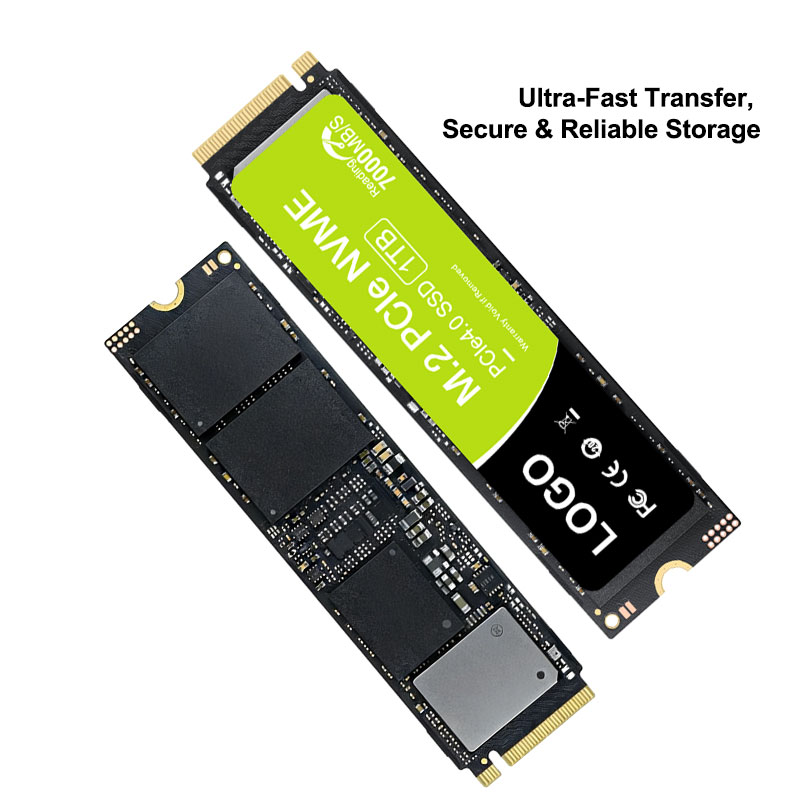

M.2 PCIe 4.0 NVMe SSD
PCIe NVMe SSD delivers breakthrough read/write performance through high-speed PCIe channels and the NVMe protocol, offering a flagship storage experience with low latency and high bandwidth to meet the demands of high-performance computing and professional applications.
▪Blazing-fast read/write speeds ▪ Low latency and high efficiency ▪ Flagship performance
Product Features
▪ Ultimate read/write speeds, breaking storage bottlenecks
▪ No mechanical components, significantly enhanced durability and shock resistance
▪ Low power consumption and minimal heat generation extend device runtime
▪Compact form factor adapts to diverse device designs
▪ Wide temperature tolerance for extreme environments
▪ High data security with robust interference resistance
M.2 PCIe 4.0 NVMe SSD
Application Area
Personal computers/office equipment/portable digital devices/gaming equipment/industrial control automation
Customized Service
NANDSTOR’ end-to-end production chain and professional R&D team provide a solid foundation for deep customization of solid-state drives. We can perform in-depth firmware development and optimization according to application requirements, delivering products with high stability and security to our customers.
Product Parameter
| Item | Specification | Description | Unit | |||||
|---|---|---|---|---|---|---|---|---|
| Overview | Interface type | PCle Gen4x4 | / | |||||

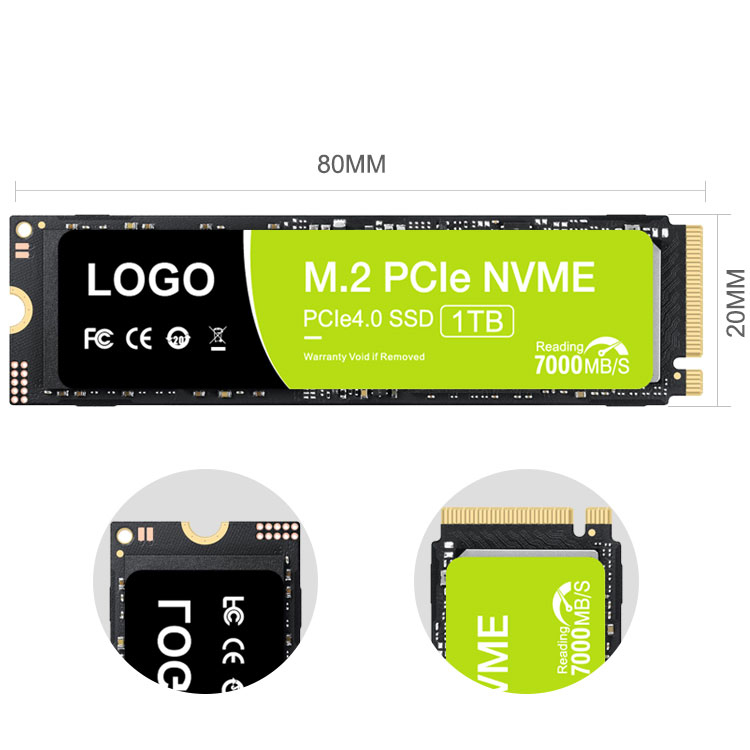

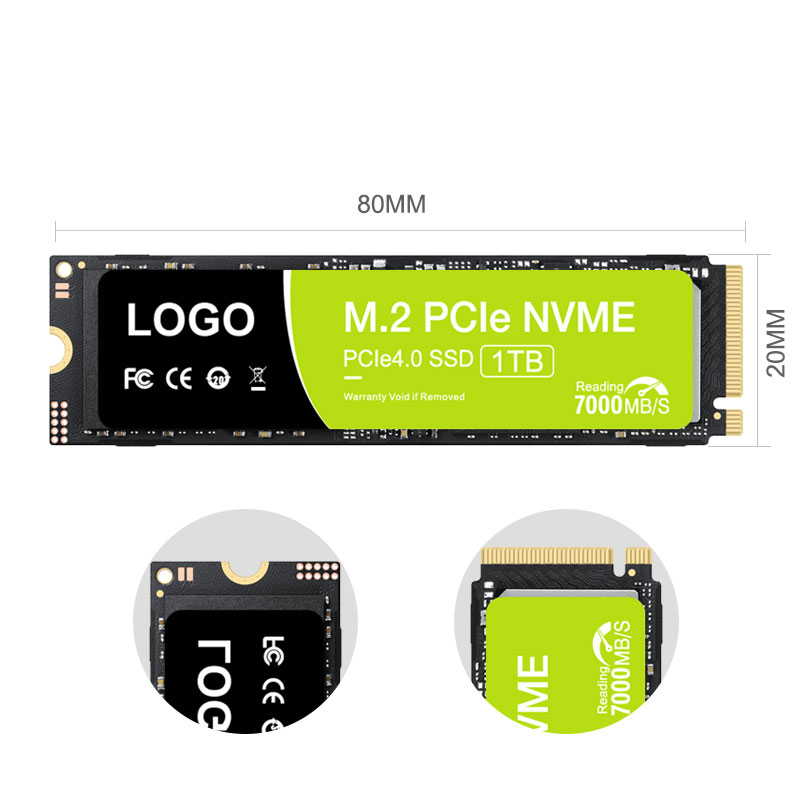

| Size | 80 ×22 / 22 ×30 / 22 ×42 | mm | ||||||
| Flash | TLC/QLC | / | ||||||
| Power down protection | Support | / | ||||||
| Quick erasure | Available | / | ||||||
| Cache | No Cache | / | ||||||
| Durability | High and low temperature resistance; X-ray shielding; Vibration resistance; Magnetic shielding; Shock resistance; Vibration resistance | / | ||||||
| Application | Desktop/All-in-One PCs/DVRs/NVRs/Game console and other devices | / | ||||||
| HS code | 8471701100 | / | ||||||
| Performance | Capacity | 512GB~4TB | GB/TB | |||||

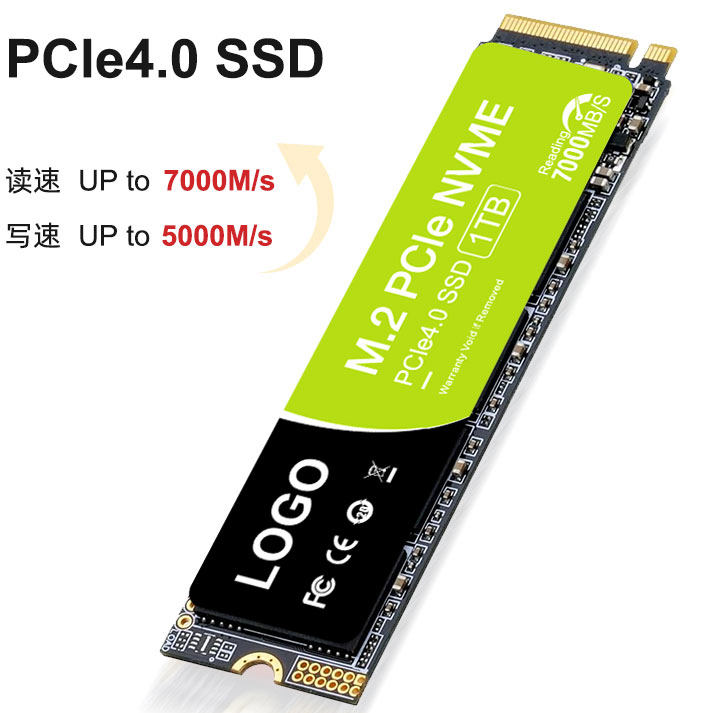

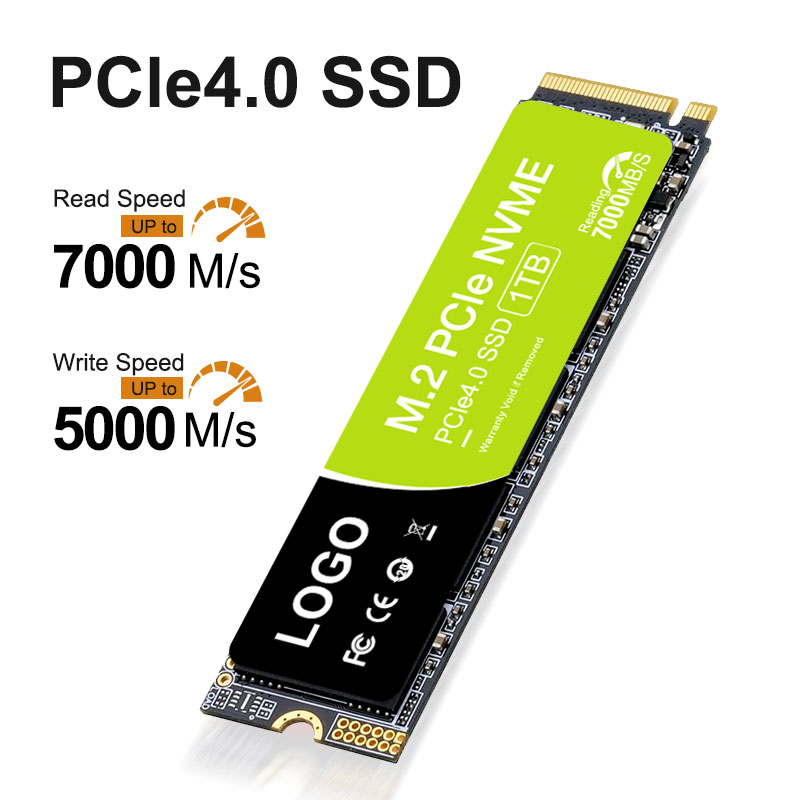

| Sequential writing | up to 5000 | MB/S | ||||||
| Sequential reading | up to 7000 | MB/S | ||||||
| TBW* | 128GB | 256GB | 512GB | 1TB | 2TB | 4TB | TBW | |
| 64TBW | 128TBW | 256TBW | 512TBW | 1024TBW | 2048TBW | / | ||
| Work/Storage Environment | Working temperature | Consumer grade:0-70 Industrial grade:-40-85 |
℃ | |||||
| Storage Temperature | Consumer grade:-25-85 Industrial grade:-40-85 |
℃ | ||||||
| Working voltage | 5（±0.5） | V | ||||||
| Warranty | / | 3year | year | |||||
| Certification | / | CE/ROHS/REACH/FCC | / | |||||
| OEM/ODM | / | Custom printing logo/ code / serial numbers /volume label / labels / package, etc. | / | |||||
Note: The data is sourced from Nandstor Laboratory. Due to variations in equipment, the actual performance may differ.
