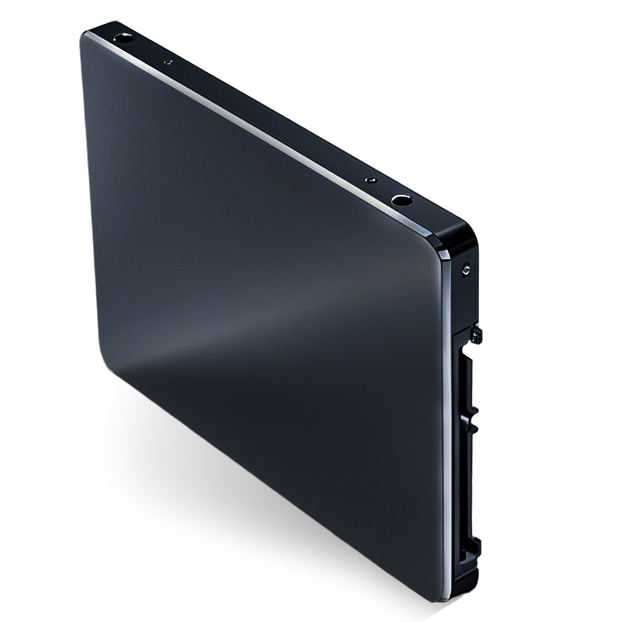

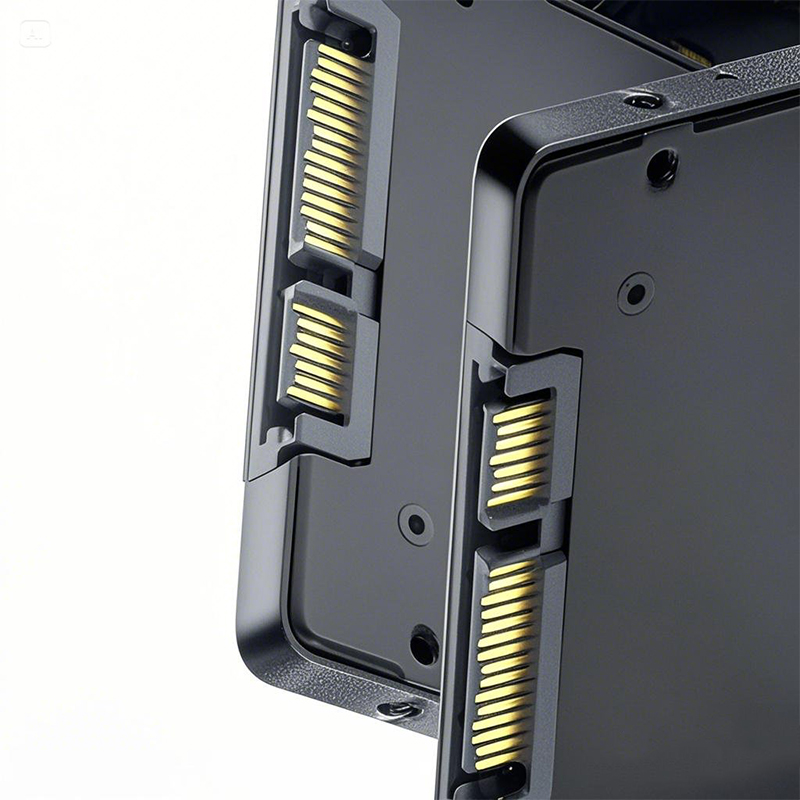

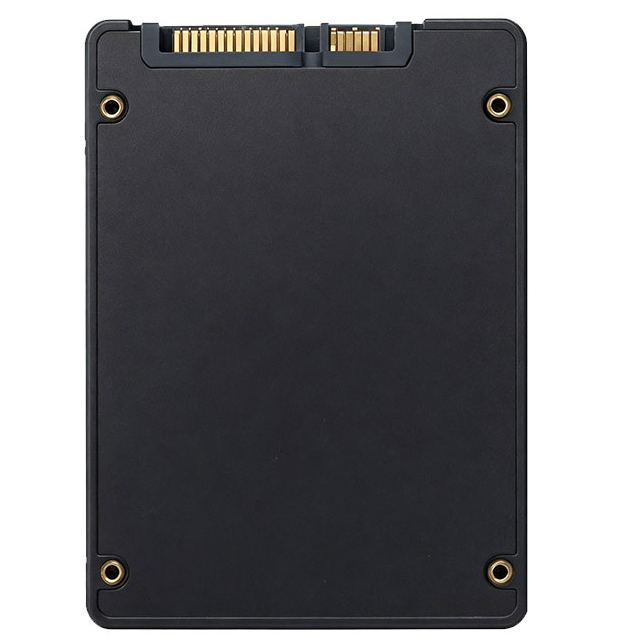

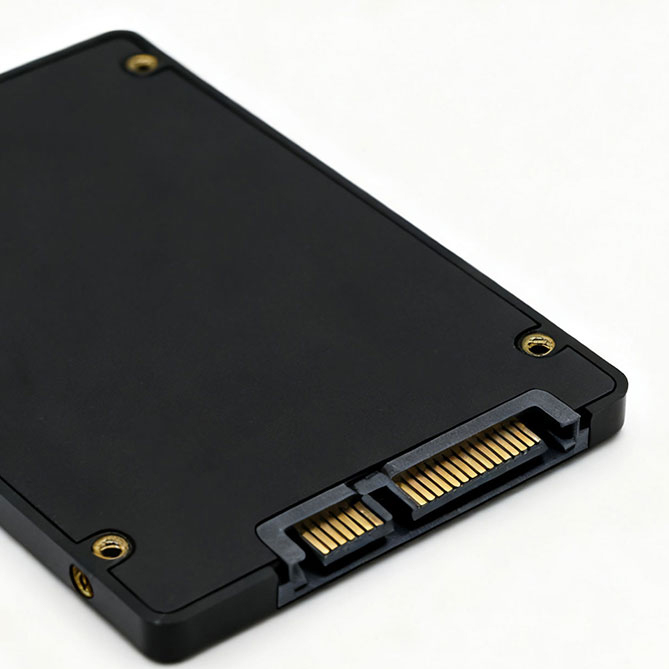

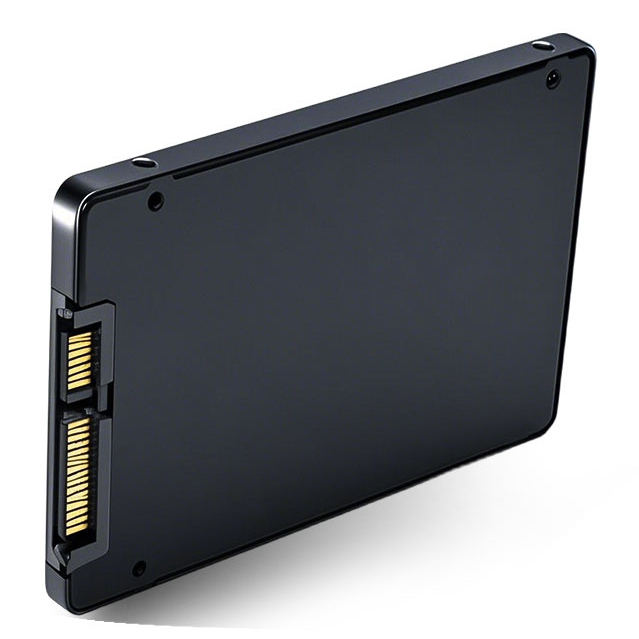

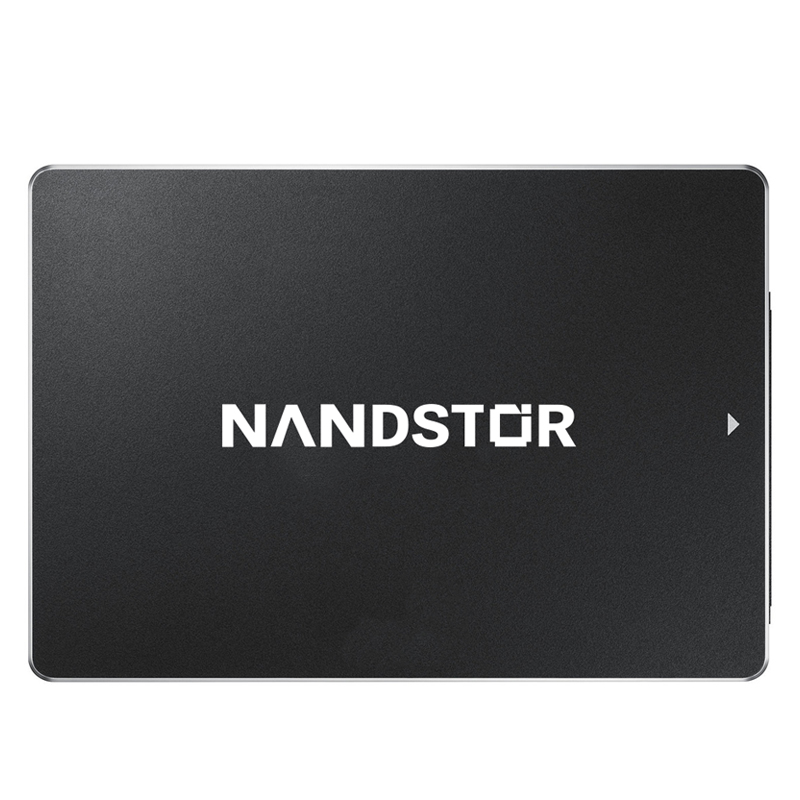

2.5″ SATA SSD

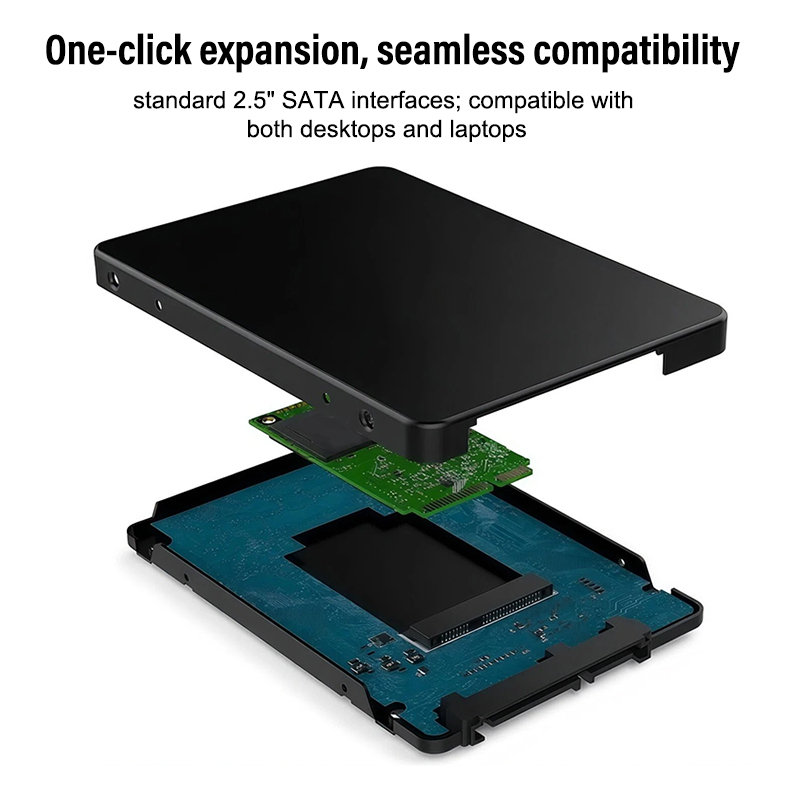

2.5" SATA III has become the mainstream storage upgrade solution for various computers and terminal devices due to its standardized dimensions, broad compatibility, and stable high-speed performance.。
▪ Broad Compatibility ▪ Stable High Speed ▪ Easy Installation
Product Features

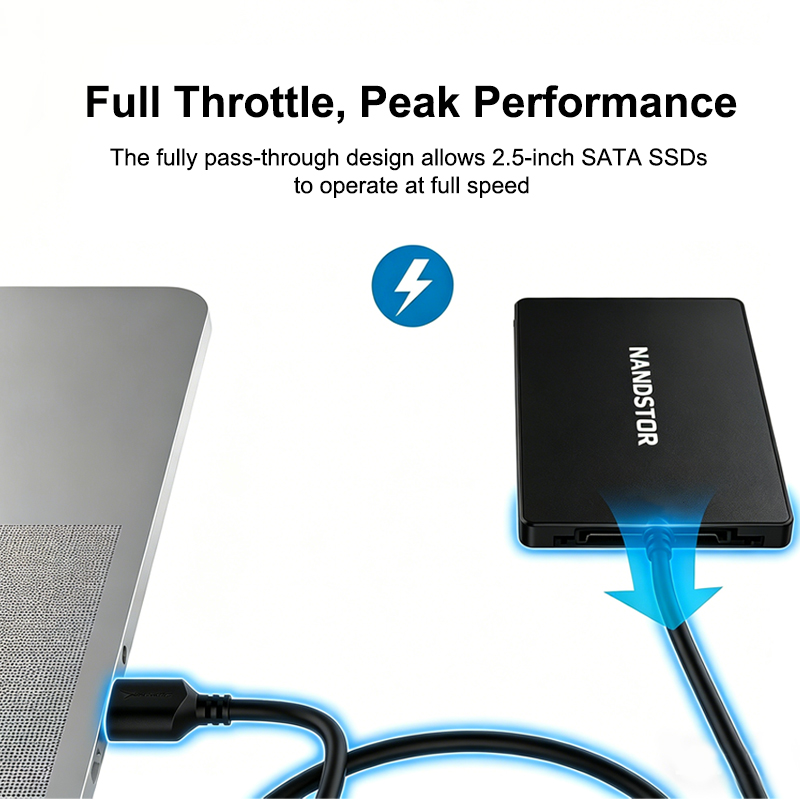

▪Ultimate read/write speeds, breaking storage bottlenecks

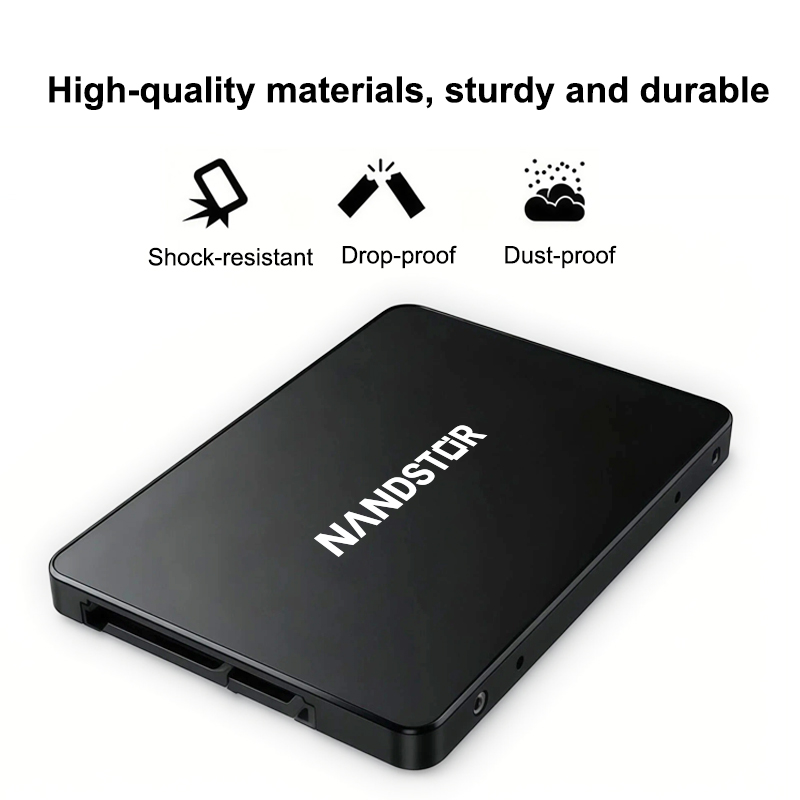

▪No mechanical components, significantly enhanced durability and shock resistance
▪ Low power consumption and minimal heat generation extend device runtime
▪Compact form factor adapts to diverse device designs
▪Wide temperature tolerance for extreme environments
▪High data security with robust interference resistance
2.5″ SATA SSD
Application Area

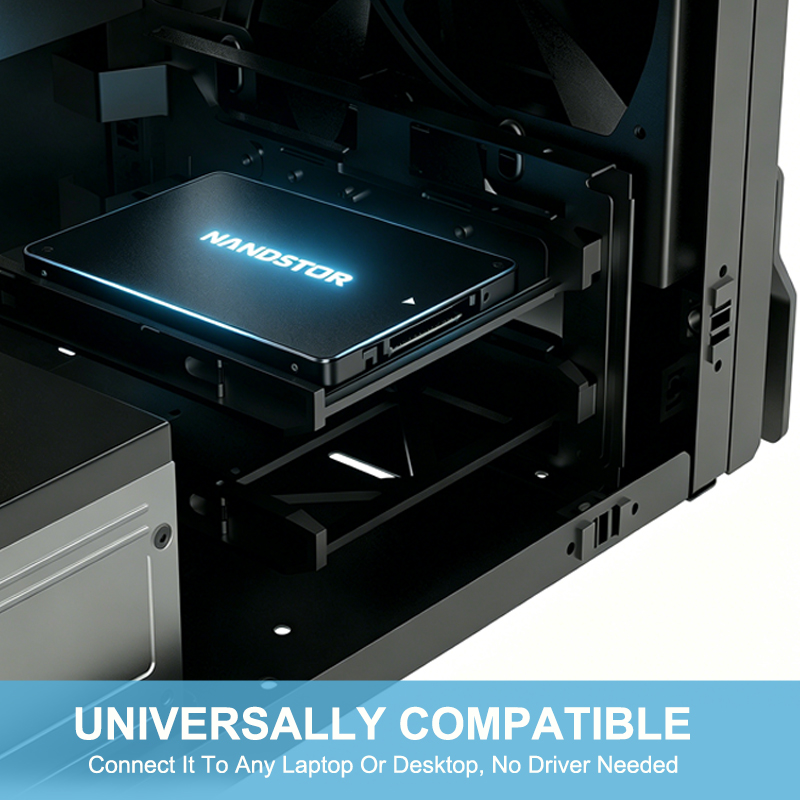

Personal computers/office equipment/portable digital devices/gaming equipment/industrial control automation
Customized Service
NANDSTOR’ end-to-end production chain and professional R&D team provide a solid foundation for deep customization of solid-state drives. We can perform in-depth firmware development and optimization according to application requirements, delivering products with high stability and security to our customers.
Product Parameter
| Item | Specification | Description | Unit | |||||
|---|---|---|---|---|---|---|---|---|
| Overview | Interface type | SATAⅢ | / | |||||
| Size | 100 ×70 ×7(± 0.15) | mm | ||||||
| Flash | TLC/QLC | / | ||||||
| Power down protection | Support | / | ||||||
| Quick erasure | Available | / | ||||||
| Cache | No Cache | / | ||||||
| Durability | High and low temperature resistance, waterproof, X-ray proof, vibration proof, magnetic proof, shock proof | / | ||||||
| Application | Desktop/All-in-One PCs/DVRs/NVRs and other devices | / | ||||||
| HS code | 8471701100 | / | ||||||
| Performance | Capacity | 120GB ~ 4TB | GB/TB | |||||
| Sequential writing | up to 500 | MB/S | ||||||
| Sequential reading | up to 550 | MB/S | ||||||
| TBW * | 128GB | 256GB | 512GB | 1TB | 2TB | 4TB | TBW | |
| 64TBW | 128TBW | 256TBW | 512TBW | 1024TBW | 2048TBW | / | ||
| Work/Storage Environment | Working temperature | Consumer grade:0-70 Industrial grade:-40-85 |
℃ | |||||
| Storage Temperature | Consumer grade:-25-85 Industrial grade:-40-85 |
℃ | ||||||
| Working voltage | 5(± 0.5) | V | ||||||
| Warranty | / | 3 | year | |||||
| Certification | / | CE/ROHS/REACH/FCC | / | |||||

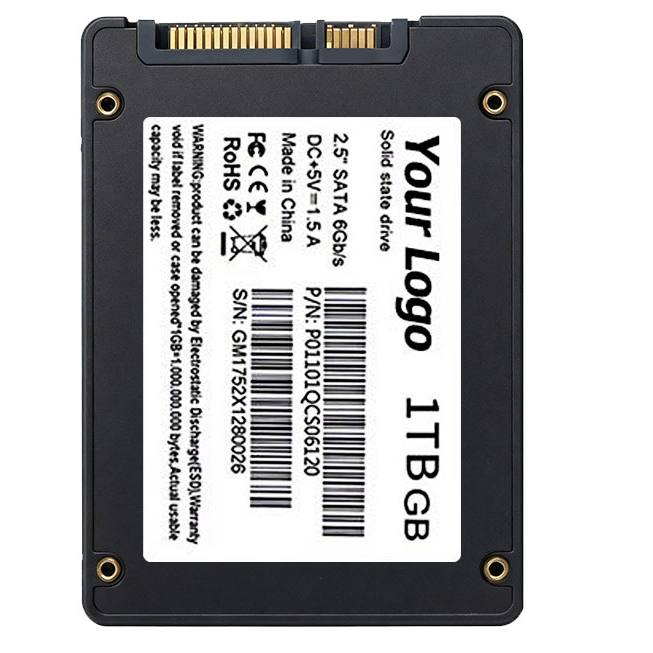

| OEM/ODM | / | Custom printing logo/ code / serial numbers /volume label / labels / package, etc. | / | |||||
| Note | SATA Revision 3.0(6Gb/s),downward compatibility SATA Revision 2.0(3Gb/s) and Revision(1.5Gb/s) | |||||||
Note: The data is sourced from Nandstor Laboratory. Due to variations in equipment, the actual performance may differ.
